Cr-48 Chrome Notebook Developer Information

Introduction

This page contains information about the Cr-48 Chrome Notebook that is interesting and/or useful to software developers. For general information about getting started with developing on ChromiumOS (the open-source version of the software on the Chrome Notebook), see the ChromiumOS Developer Guide.

Entering Developer Mode

You might want to enter developer mode if you're following the instructions in the ChromiumOS Developer Guide, or if you just want to get access to a shell on your device to poke around. To get your device into Developer Mode, you'll need to flip the developer switch to the "Developer Mode" position.

Caution: Modifications you make to the system are not supported by Google, may cause hardware issues and may void warranty.

The first time a Chrome Notebook boots in Developer Mode after leaving Normal Mode it will:

The erase and wait steps only happen when you first switch to Developer Mode, to help prevent someone from quickly reimaging your device while you're away from the keyboard. Successive boots in Developer Mode will only:

Entering Developer mode is easy:

  1. Remove the battery.
  2. Peel off the sticker that hides the developer switch (see image 1).
  3. Flip the developer switch towards the battery connector (see image 2).
  4. Put the battery back in.
  5. Turn the device back on.
  6. Press Ctrl-D at the scary warning screen.
  7. Wait 5-10 minutes and any saved information on your device will be erased.
  8. Congratulations, enjoy hacking in Developer Mode!

Here are some pictures that might help:

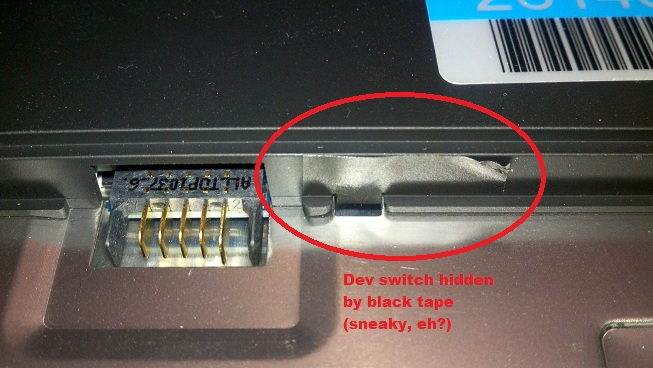

Image 1: Location of Developer Switch


Image 2: Developer Switch in "Developer Mode" position.

Getting the recovery kernel

If you are trying to install your own disk image onto your Cr-48 Chrome Notebook (maybe you're following the ChromiumOS Developer Instructions), you need the recovery kernel. You can find it at: https://dl.google.com/dl/edgedl/chromeos/recovery/mario_recovery_kernel.zip (this did not work for me, and I had to follow these instructions instead).

Leaving Developer Mode

Returning to normal mode is as simple as entering developer mode: shut down, remove the battery, flip the switch, reboot. There are a couple of things to note, however. First, assuming you haven't modified anything, the first time you boot in normal mode after leaving developer mode, the stateful partition will be erased. This is a much faster erase process than when entering developer mode, usually only 30 or 40 seconds, and only happens with the first boot. Second, verified boot will be enabled, meaning that only Google-signed images will be bootable. If you haven't modified the original kernel or rootfs partitions in any way, you should have no problems. If you've made changes to the kernel partitions, the Cr-48 will refuse to boot that kernel and will display a recovery screen. You'll have to create a recovery USB drive to restore your Cr-48 to the factory condition. If you've made changes to the rootfs partition but not the kernel, the Cr-48 may appear to boot normally, but may later suddenly reboot and/or display the recovery screen. This happens because the kernel verifies the rootfs as each block is read from the SSD, so it may not encounter a modified block until sometime later. When it does, it will reboot immediately.

How to use the Recovery Mode button

Recovery mode is a special boot operation in which the BIOS will:

You will encounter recovery mode when the BIOS is unable to find a valid kernel to boot, either because the SSD has become corrupted or (more likely) because you modified all the kernel partitions while in developer mode and have switched back to normal mode. While in developer mode, you will be presented with the scary boot screen at every boot. Pressing SPACE or RETURN will take you to recovery mode. You can also force your Cr-48 into recovery mode (even in normal mode) by using the recovery mode button. On the bottom of the Cr-48, directly below the ESC key, there is a tiny pinhole:

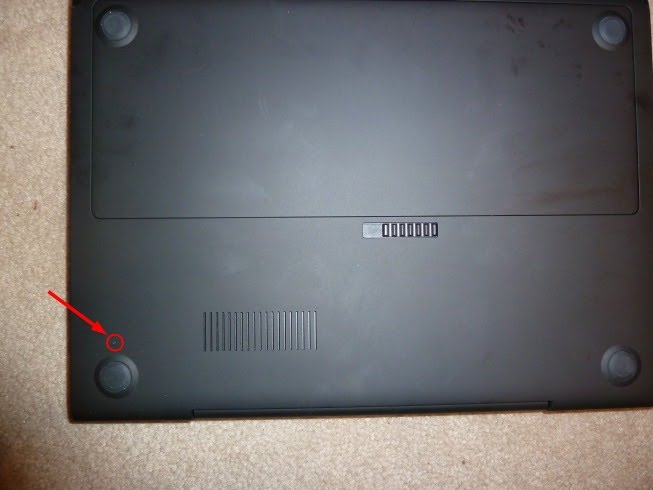

If you stick a paperclip into this hole, you'll feel it press a button. To force recovery mode, turn the Cr-48 off, press this button, and while keeping it pressed, turn the Cr-48 on again. This sometimes requires three hands or a bit of contortion, but you'll know it worked when you see the recovery screen instead of booting normally. There is little use for this button other than booting a recovery USB drive. In developer mode you can run your own scripts from the recovery USB drive, but in developer mode you can trigger recovery mode by just pressing SPACE at boot. Still, there it is.

How to boot your own (non-ChromiumOS) image from USB

(Note: This part is outdated: make_developer_script_runner.sh does not exist anymore)

Sometimes, you just want to have a shell or maybe you want to install another operating system. If you're in Developer Mode, then you can totally do that.

This tip could actually be useful to someone who wasn't a ChromiumOS developer. However, at the moment the only easy way to get the tools is to follow many of the steps in the ChromiumOS Developer Guide. If you don't care about developing for ChromiumOS and just want to get to booting your own stuff, you should read the developer guide with these thoughts in mind:

  1. The instructions in the ChromiumOS Developer Guide assume that you're running the Ubuntu Lucid distribution of Linux. If you're not, you may not be able to follow them.
  2. You should only need to follow the instructions up to the point of "Enter the chroot". You don't actually need to build a ChromiumOS image. You probably also want to choose the "minilayout" when downloading the source code, since that will be faster.

The rest of the instructions will assume that you've followed the instructions enough to make a chroot and that you're currently in the chroot.

Getting the recovery kernel for your ChromeOS Notebook

You'll need to get a "recovery kernel" for your ChromeOS Notebook in order to follow these instructions. You can download the an officially-signed Recovery Kernel for the Cr-48 Chromebook (AKA Mario) by running the steps below from inside the chroot:

curl https://dl.google.com/dl/edgedl/chromeos/recovery/mario_recovery_kernel.zip > ~/trunk/mario_recovery_kernel.zip
unzip -d ~/trunk ~/trunk/mario_recovery_kernel.zip
RECOVERY_KERNEL=~/trunk/mario_recovery_kernel.bin

The instructions below assume that you've set the RECOVERY_KERNEL variable as above.

If you have trouble downloading the recovery kernel, you might be able to extract an officially-signed Recovery Kernel from an officially-signed Recovery Image instead.

Creating a USB disk that will boot a simple script

Using the make_developer_script_runner.sh tool, you can create a USB disk that will run shell script. In this example, we'll show how to create a USB disk with a script that will leave you running the shell.

Create the script

echo -e  '#!/bin/sh\nexec /bin/sh\n' > run_a_shell.sh

Build a disk image

Now, use make_developer_script_runner.sh. The script will create a file called dev_runner_image.bin that can be placed on a USB disk. Note that these instructions assume that you've set the RECOVERY_KERNEL variable properly, as explained above.

./make_developer_script_runner.sh --kernel_image=${RECOVERY_KERNEL} --developer_script=run_a_shell.sh

Find your USB disk

You should plug a USB disk in to your computer now and wait a few seconds for it to be detected. You can then run this quick command to use some ChromiumOS tools to detect the disk and find out where it is:

bash -c 'source chromeos-common.sh;
  echo
  for disk in $(list_usb_disks);
    do echo /dev/$disk - $(get_disk_info $disk manufacturer) - $(get_disk_info $disk product);
  done'

...assuming your disk was detected, it should print out as a result of that command. For instance, on my computer, I see this, which tells me that my USB disk is in /dev/sdc:

/dev/sdc - Kingston - DataTraveler G3

Format your USB disk with the disk image

==WARNING==: This step will erase all data on your USB disk. Make sure there's nothing important on it. ==ALSO==: If you mistype this step (don't put the right /dev/sdX in the command), it can blow away some other disk on your computer.**

BE CAREFUL!

Really, I'm serious. Be very careful. If you shoot yourself in the foot with these instructions, you only get to blame yourself.

OK, now that you've read all of the disclaimers, the command you'll need to enter is this, replacing ${MY_USB_KEY_LOCATION} with the /dev/sdX value that is for your USB disk (see the "Find your USB disk" instruction above).

TODO: You may need to unmount your USB disk before running this instruction if Ubuntu mounted it for you. Put a set of instructions that tell how to do that.

sudo dd if=dev_runner_image.bin of=${MY_USB_KEY_LOCATION} bs=16M conv=fsync

Boot your ChromeOS Notebook with your USB image

Now, shut off your ChromeOS Notebook and turn it back on. Since you're in Developer Mode (right?), you should see the warning. Hit the space bar to enter recovery mode. Once prompted, insert your USB disk.

Assuming that you haven't reimaged the built-in SSD with a developer-signed image, you'll need to wait 5 minutes each time you boot up with this disk image. This is a security precaution, to prevent someone from quickly rebooting your device from their USB key while you're getting more coffee (see the Developer Mode design document).

Create a USB disk that will boot another operating system

TODO: This should be possible for someone skilled in the art of Linux. The above instructions tell you how to run any arbitrary Linux program, and (with root access) you should be able to do pretty much anything you want.

It would be nice to get some good instructions here, though.

Install your own build of ChromiumOS

First, download the recovery kernel, as explained above. Then build a Chromium OS image, as mentioned in the ChromiumOS Developer Guide. Once you have the recovery kernel and the OS image, you'll stitch them together, copy them to a USB drive, and then boot your system from the USB drive.

Combine the recovery kernel and your OS image, to create a recovery image

You can build your own recovery image using mod_image_for_recovery.sh. This image will have the officially-signed Recovery Kernel (so you can boot from USB) and will install a self-signed SSD image (so you can boot only with developer mode). Here's the magic set of steps (assuming that you've got a path to the recovery kernel in ${RECOVERY_KERNEL} and that the recovery kernel is a match for the ${BOARD} you built):

./mod_image_for_recovery.sh \
    --board=${BOARD} \
    --nominimize_image \
    --kernel_image ${RECOVERY_KERNEL} \
    --image ~/trunk/src/build/images/${BOARD}/latest/chromiumos_image.bin

SIDE NOTE: If you're interested in creating a test image (used for allowing ChromiumOS to talk to autotest), you can run cros build-image test to create a test image that can be combined with the recovery image:

cros build-image --board=${BOARD} test
./mod_image_for_recovery.sh \
    --board=${BOARD} \
    --nominimize_image \
    --kernel_image ${RECOVERY_KERNEL} \
    --image ~/trunk/src/build/images/${BOARD}/latest/chromiumos_test_image.bin

Copy the recovery image to a USB key

The first step is to insert a USB flash disk (4 GB or bigger) into your build computer. This disk will be completely erased, so make sure it doesn't have anything important on it. Wait ~10 seconds for the USB disk to register, then type the following command:

cros flash --board=${BOARD} usb://

For more details on using this tool, see the Cros Flash page.

When the cros flash command finishes, you can simply unplug your USB key and it's ready to boot from.

IMPORTANT NOTE: To emphasize again, cros flash completely replaces the contents of your USB disk. Make sure there is nothing important on your USB disk before you run this command.

Install your image to the Cr-48's SSD

In developer mode, your ChromeOS Notebook gives you an option to use a recovery image every time the machine boots. To install your recovery image, do the following:

  1. Turn your ChromeOS Notebook off.
  2. Turn it back on.
  3. During the boot warning, press space to enter recovery mode.
  4. Wait until prompted to put your USB disk in.
  5. Put the USB disk in.
  6. Wait while the image is copied to the SSD.

If you reboot now, you'll be booting from your image (you may need to wait past the recovery screen). Congratulations!

IMPORTANT NOTE: You must stay in Developer Mode to continue booting your image. Since your image was not signed by the release keys (it's self-signed image), it will only boot in Developer Mode. If you want to go back to Release Mode, just copy (/bin/dd) a recovery image directly to a USB drive, without making any modifications to it.

How to install a different OS on your SSD

There's an example of configuring a Cr-48 to dual-boot ChromeOS and Ubuntu here.

Troubleshooting

Battery Doesn't Charge

If your battery is completely drained, sometimes the CR-48 has trouble charging it again. You might be able to workaround it by doing:

Firmware

See the H2C firmware page for more details.

What's inside?

WARNING: Opening the case and fiddling with the stuff inside could easily brick your system and make it unrecoverable. DO NOT ATTEMPT if you are not familiar with this process.

Components

Here is a rundown of the parts that are not soldered down:

Disassembly

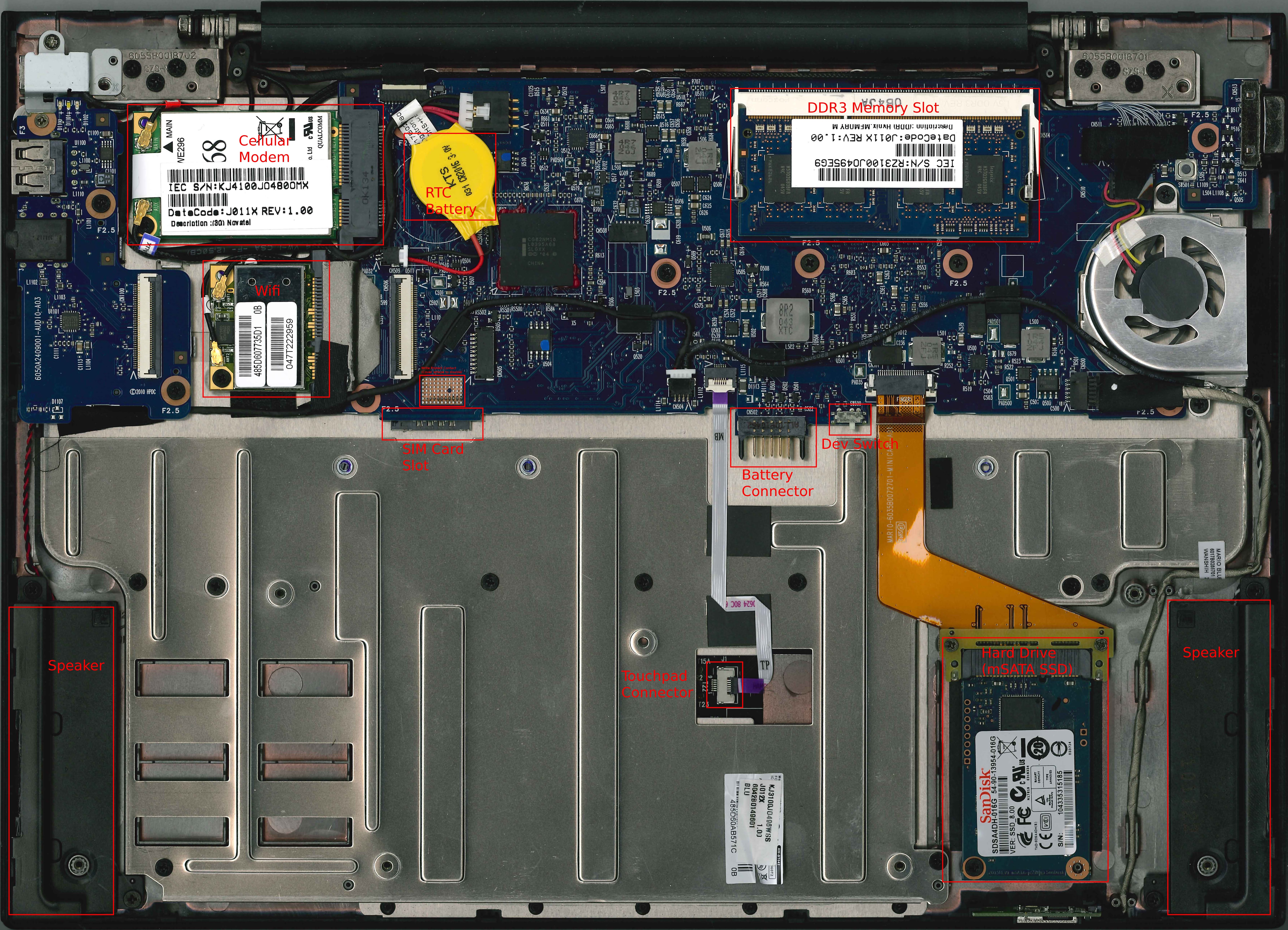

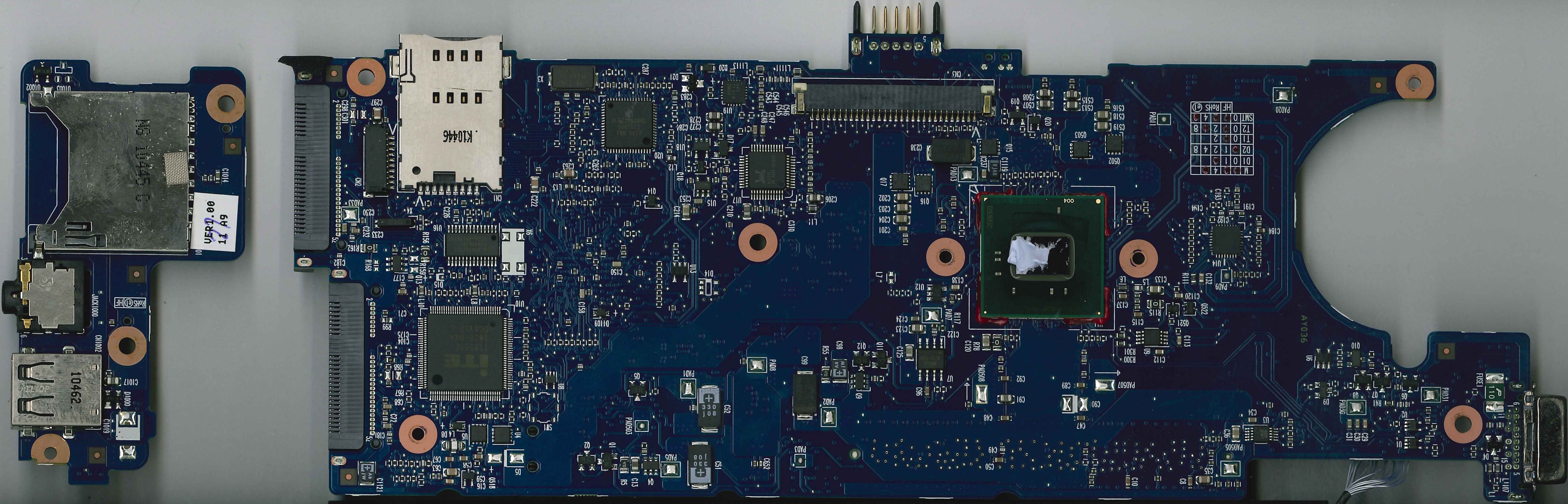

Taking apart your laptop is not encouraged. If you have hardware troubles, please seek assistance from a friend knowledgeable in the area. If you just want to see what the inside looks like, gaze upon this (click for a high res version):

image image

However, we acknowledge that some people like to tinker. So here's a quick guide to taking it apart:

You now have access to the upgradable components.
