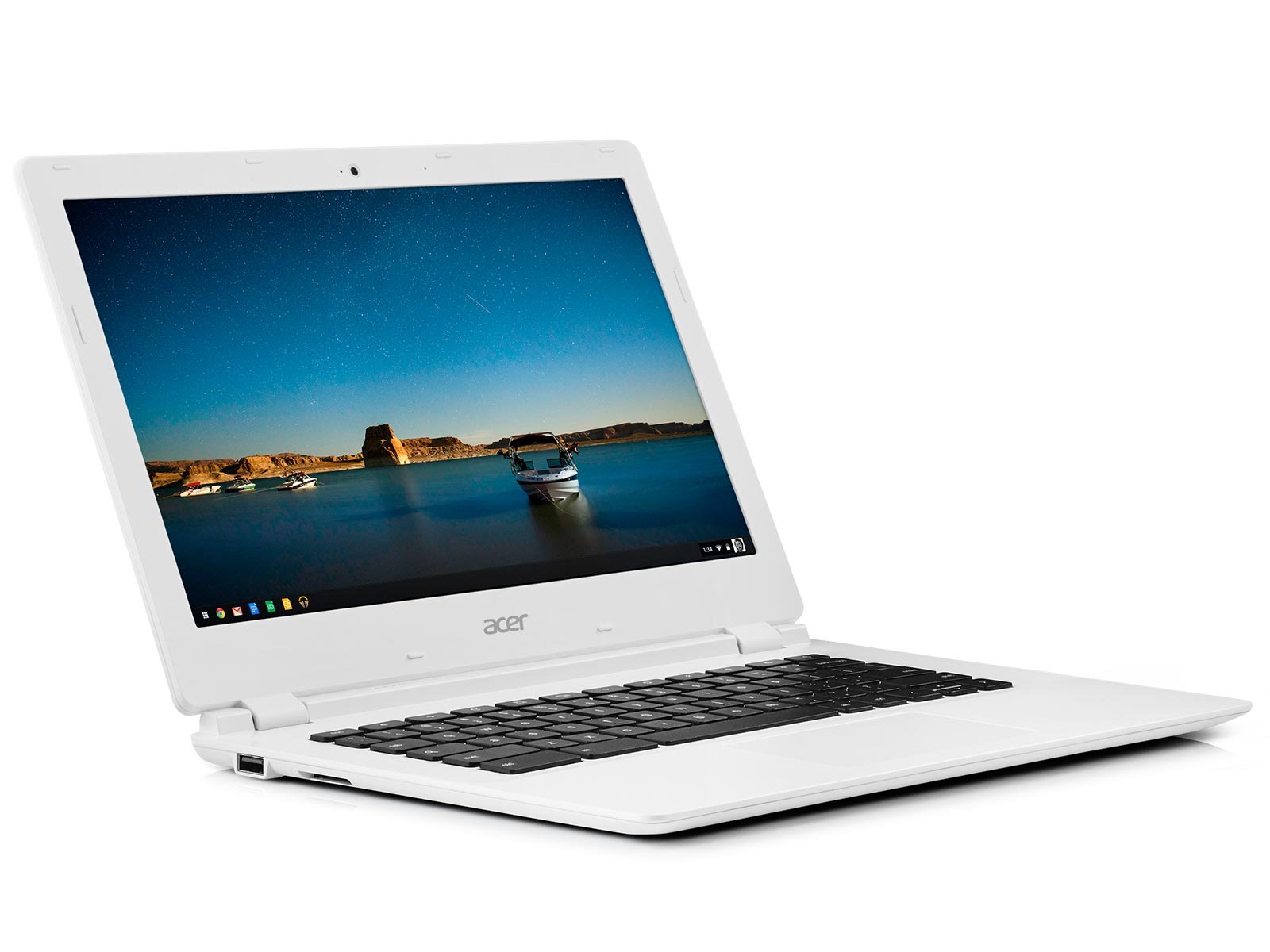

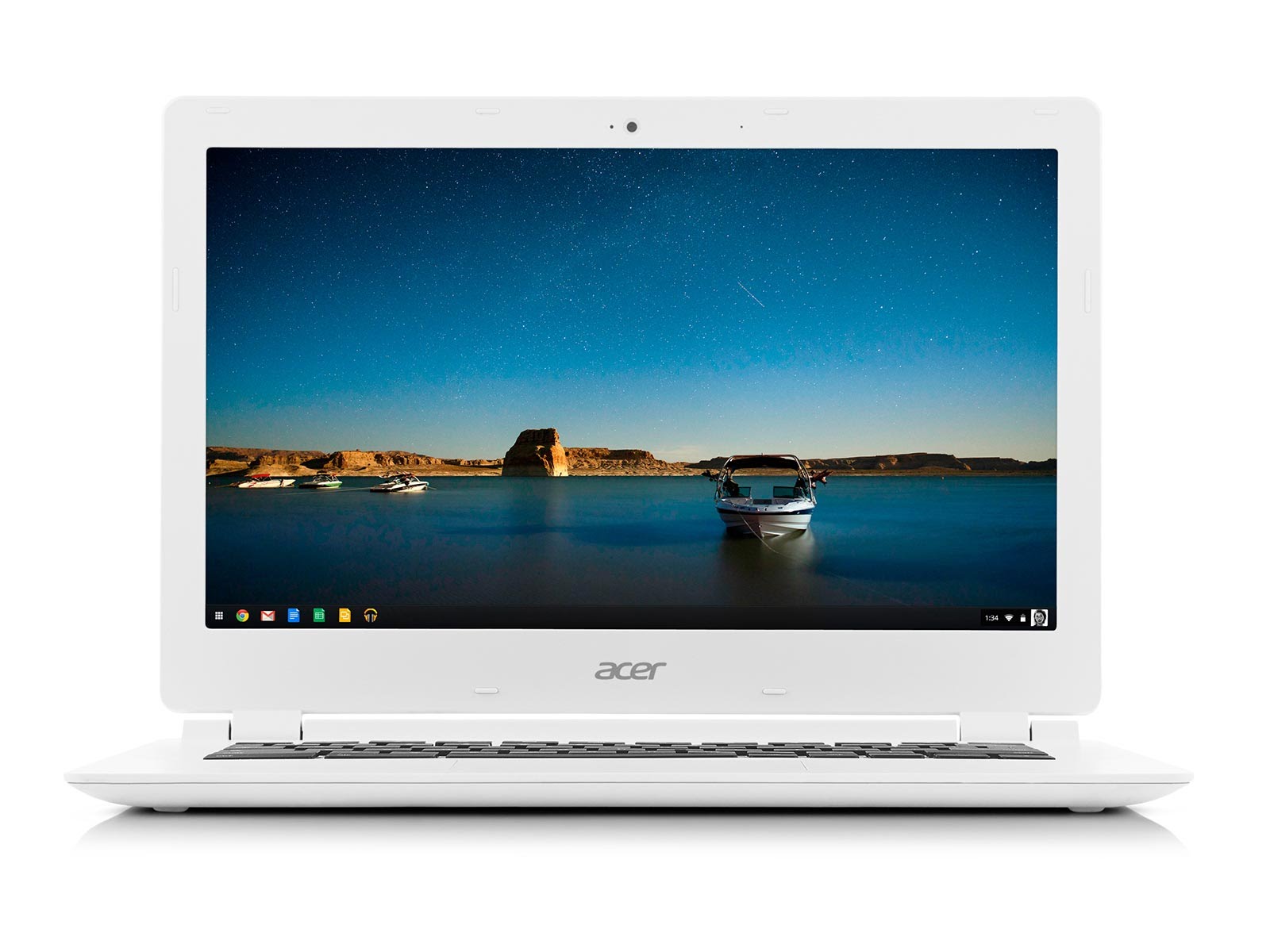

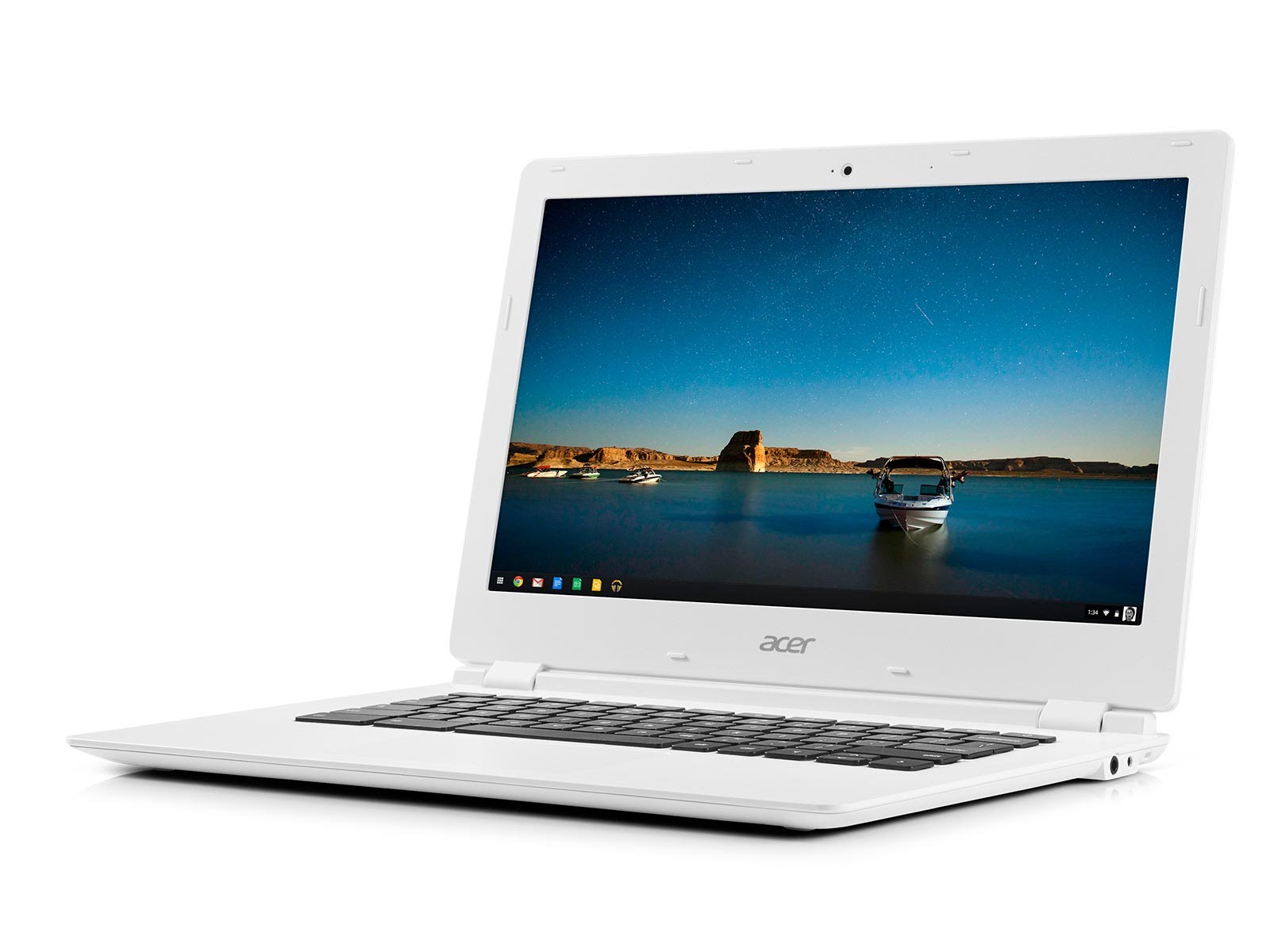

Acer CB5-311 Chromebook 13

Introduction

This page contains information about the Acer Chromebook 13 (CB5-311) that is interesting and/or useful to software developers. For general information about getting started with developing on ChromiumOS (the open-source version of the software on the Chrome Notebook), see the ChromiumOS Developer Guide.

Specifications

• Dimensions: 328 x 229 x 18.0 mm
• Weight: 1.5kg (3.31 lbs)
• CPU: NVIDIA Tegra Logan K1 quad-core Cortex-A15
• RAM: 2GiB DDR3 (Not upgradeable)
• Display: 13.3" 1920x1080 16:9 TN 200 nits
• Disk: 16GB SSD
• I/O:
  • HDMI port

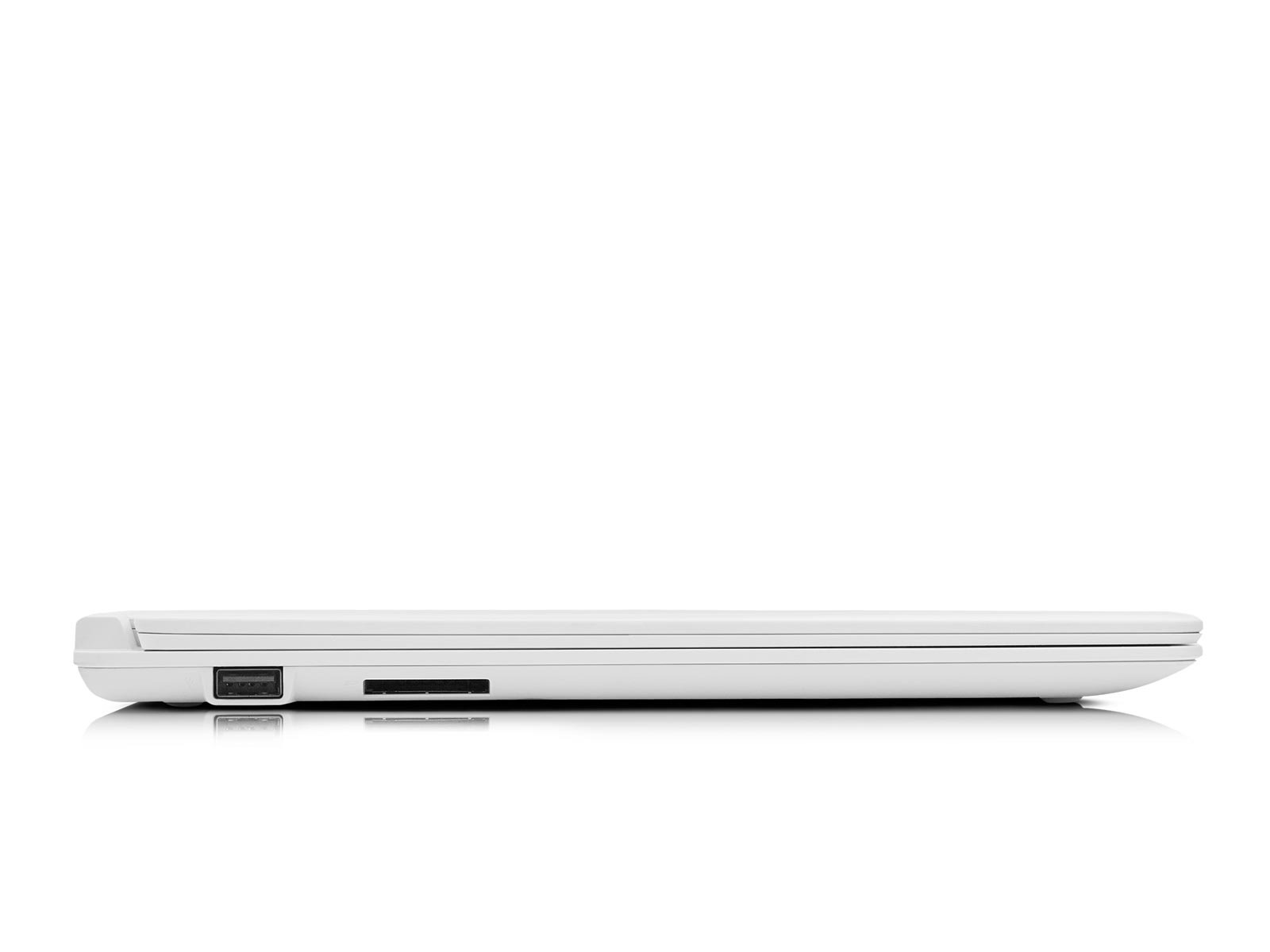

  • 2 x USB 3.0
  • SD slot (SDXC compatible)

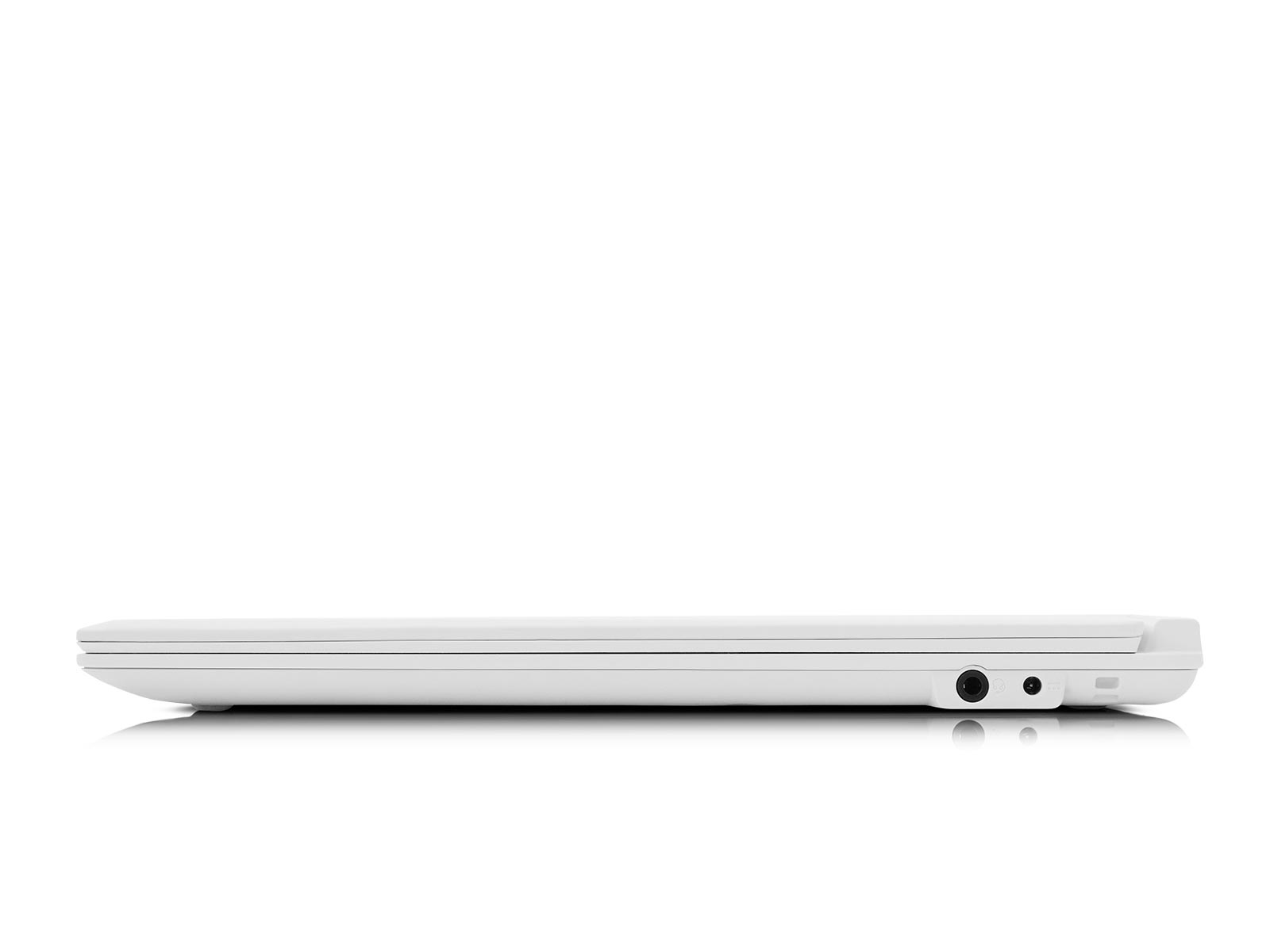

  • Headphone/mic combo jack
  • Camera & mic
  • Keyboard & touchpad
• Connectivity:
  • WiFi: 802.11 a/b/g/n/ac
  • Bluetooth 4.0
  • USB ports can handle some Ethernet dongles
• no Kensington Security Slot
• Linux 3.10

Developer Mode

Caution: Modifications you make to the system are not supported by Google, may cause hardware, software or security issues and may void warranty.

An unrelated note: Holding just Refresh and poking the Power button hard-resets the machine without entering Recovery. That's occasionally useful, but use it with care - it doesn't sync the disk or shut down politely, so there's a nonzero chance of trashing the contents of your stateful partition.

Introduction

Enabling Developer mode is the first step to tinkering with your Chromebook. With Developer mode enabled you can do things like poke around on a command shell (as root if you want), install ChromiumOS, or try other OS's. Note that Developer mode turns off some security features like verified boot and disabling the shell access. If you want to browse in a safer, more secure way, leave Developer mode turned OFF. Note: Switching between Developer and Normal (non-developer) modes will remove user accounts and their associated information from your Chromebook.

Entering

On this device, both the recovery button and the dev-switch have been virtualized. Our partners don't really like physical switches - they cost money, take up space on the motherboard, and require holes in the case.

To invoke Recovery mode, you hold down the ESC and Refresh (F3) keys and poke the Power button.

To enter Dev-mode you first invoke Recovery, and at the Recovery screen press Ctrl-D (there's no prompt - you have to know to do it). It will ask you to confirm, then reboot into dev-mode.

Dev-mode works the same as always: It will show the scary boot screen and you need to press Ctrl-D or wait 30 seconds to continue booting.

USB Boot

By default, USB booting is disabled. Once you are in Dev-mode and have a root shell, you can run:

sudo crossystem dev_boot_usb=1

and reboot once to boot from USB drives with Ctrl-U.

Note: Only CrOS formatted images will boot via USB. Other Linux distros will not work.

Legacy Boot

Sorry, but this device does not support a legacy BIOS mode. It has an ARM cpu, so there is no such mode anyways.

Leaving

To leave Dev-mode and go back to normal mode, just follow the instructions at the scary boot screen. It will prompt you to confirm.

If you want to leave Dev-mode programmatically, you can run crossystem disable_dev_request=1; reboot from a root shell. There's no way to enter Dev-mode programmatically, and just seeing the Recovery screen isn't enough - you have to use the three-finger salute which hard-resets the machine first. That's to prevent a remote attacker from tricking your machine into dev-mode without your knowledge.

Firmware

This device uses coreboot to boot the system. You can find the source in the ChromiumOS coreboot git tree in the firmware-nyan-5771.B branch.
