Crostini developer guide

If you just want to use Linux, you should read the Running Custom Containers Under ChromeOS doc. This doc is all about how the crostini is made, not how to use it. :)

What is all this stuff?

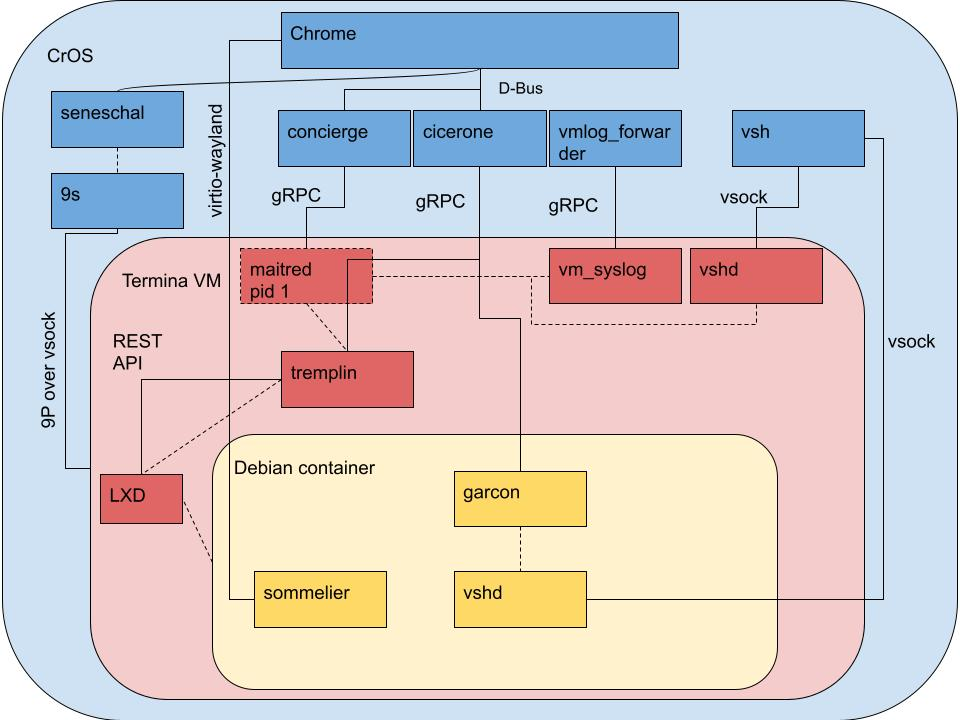

Note: this diagram is not exhaustive, but covers the major services and how they interact.

Googlers: update this image at go/termina-rpc

Where does the code live?

How do I build/deploy/test my change?

General prerequisites

• Follow the ChromiumOS Developer Guide for setup.
• Device with test image in developer mode.

Ensure you are able to SSH to the device:

(inside) $ export DEVICE_IP=123.45.67.765 # insert your test device IP here
(inside) $ ssh ${DEVICE_IP} echo OK

For the rest of this document, it will be assumed that the BOARD environment variable in cros_sdk is set to the board name of your test device as explained in the Select a board section of the ChromiumOS Developer Guide.

Crostini requires a signed-in, non-guest user account to run. You can either use a test Google account, or run /usr/local/autotest/bin/autologin.py -d on a test image to log in with a fake testuser profile.

Host service changes

To begin working on a change to one of the host services (see Where does the code live?), use the cros_workon command:

(outside) $ cros workon --board=${BOARD} start ${PACKAGE_NAME}

Now that the package(s) are cros_workon start-ed, they will be built from source instead of using binary prebuilts:

(outside) $ cros_sdk emerge-${BOARD} ${PACKAGE_NAME}

Then deploy the package to the device for testing:

(outside) $ cros deploy ${DEVICE_IP} ${PACKAGE_NAME}

Most VM services on the host have upstart conditions start on started vm_concierge and stop on stopped vm_concierge. Since restarting only one daemon could lead to inconsistent state across all services, it's best to shut them all down, then start them again with a clean slate. Stopping the vm_concierge service on the host stops all running VMs, along other VM services on the host. Starting vm_concierge will trigger other VM services to start as well.

(device) # stop vm_concierge && start vm_concierge

Guest service changes

The guest packages that run inside the termina VM are built for two special ChromeOS boards: tatl (for x86 devices) and tael (for arm devices). These VM images are distributed as part of the termina-dlc DLC package.

To determine the guest board type, run uname -m on the device.

First, cros_workon --board=${GUEST_BOARD} start each guest package you are modifying (see Where does the code live?):

(outside) $ cros workon --board=${GUEST_BOARD} start ${PACKAGE_NAME}

Deploying individual packages

This is the equivalent of cros deploy for host OS packages, it will deploy modified files for a package. Note that this just copies files and won't e.g. deploy dependencies. Each time you sync you'll usually need to deploy a full image first, then can deploy individual packages.

Build the package like a normal CrOS board:

(outside) $ cros_sdk cros_workon_make --install --test --board=${GUEST_BOARD} \
           ${PACKAGE_NAME}

Then deploy it like a normal CrOS package, except using a different tool. --restart-services will shut down all running VMs so your changes are picked up

(inside) $ ../../chromite/contrib/guestos/deploy_to_termina \
           --board ${GUEST_BOARD} ${DEVICE_IP} ${PACKAGE_NAME} --restart-services

Deploying a full image

This is the equivalent of cros flash for a host OS image, it will rebuild and redeploy everything and is needed for some changes (e.g. adding new users), but is slower.

Build the guest image like a normal CrOS board:

(outside) $ cros build-packages --board=${GUEST_BOARD}
(outside) $ cros build-image --board=${GUEST_BOARD} test

This image is installed into the host image by the termina-dlc package, and can be built and deployed like the host service changes above:

(outside) $ cros workon --board=${BOARD} start termina-dlc
(outside) $ cros_sdk emerge-${BOARD} termina-dlc
# Shut down any running VMs before deploying for changes to get picked up.
$ ssh ${DEVICE_IP} -- restart vm_concierge
(outside) $ cros deploy ${DEVICE_IP} termina-dlc

After cros deploy completes, newly-launched VMs will use the test DLC with the updated packages.

Deploying a new kernel

When testing changes to the termina kernel, the process is similar to a full image deploy as above, but the kernel will also need to be rebuilt. For more information specifically about configuration, etc, please reference the ChromiumOS Documentation. The current kernel version may be found in the termina configuration but for the purposes of this documentation we assume the current (as of writing) 6.1 kernel.

To build the kernel:

(outside) cros workon --board=${GUEST_BOARD} start chromeos-kernel-6_1
(outside) # use emacs, vim, vscode, or magnetized needle directly on storage medium to effect kernel changes
(outside) cros_sdk cros_workon_make --install --test --board=${GUEST_BOARD} chromeos-kernel-6_1

After which you can follow the termina-dlc instructions above to deploy the full image.

Container changes

Packages can end up in the container by two mechanisms:

1. Native Debian packages (.debs) are preinstalled in the container, and upgraded out-of-band from the rest of ChromeOS by APT.

2. Packages built from Portage in ChromeOS are copied into /opt/google/cros-containers in Termina by the termina_container_tools ebuild. These are updated with the Termina VM image.

When working on Debian packages, the .debs should be copied to the crostini container and installed with apt:

# A leading "./" or other unambiguous path is needed to install a local .deb.
(penguin) $ apt install ./foo.deb

Portage-managed packages should be treated like other [Guest service changes]. However, the termina_container_tools package is not cros_workon, so it must be manually emerged to propagate changes into /opt/google/cros-containers. The following example uses sommelier:

(outside) $ cros_sdk emerge-${GUEST_BOARD} sommelier               # build for Termina
(outside) $ cros_sdk emerge-${GUEST_BOARD} termina_container_tools # copy into /opt

Once termina_container_tools is manually rebuilt, the termina-dlc flow will work as normal.

Building tools directly in the container

Sommelier and cros_im can be built and run directly from within the container. Other guest tools do not yet support this.

Sommelier

Build with meson/ninja and install with update-alternatives:

sudo apt install clang meson libwayland-dev cmake pkg-config libgbm-dev libdrm-dev libxpm-dev libpixman-1-dev libx11-xcb-dev libxcb-composite0-dev libxkbcommon-dev libgtest-dev python3-jinja2
git clone https://chromium.googlesource.com/chromiumos/platform2
cd platform2/vm_tools/sommelier
meson build && cd build && ninja

sudo update-alternatives --install /usr/bin/sommelier sommelier $(pwd)/sommelier 2

As sommelier runs as a service you might want to manually kill already running sommelier processes so they respawn with the custom sommelier, or simply restart the container. You can then use gdb to attach to and debug running sommelier instances.

To switch between the custom sommelier and the sommelier from termina, run sudo update-alternatives --config sommelier.

cros_im

See cros_im/README.md for details.

Running VM executables off of a device

It's possible to run binaries built for the termina VM from the chromium OS chroot, which can be useful for debugging or testing. Assuming you already have a chromium OS chroot set up and have built the tatl board, you can run inside the chroot:

../platform2/common-mk/platform2_test.py --board tatl [--run_as_root] [command to run]

For example, to run LXD, you could run inside the chroot:

../platform2/common-mk/platform2_test.py --board tatl --run_as_root env LXD_DIR=/path/to/lxd/data lxd
../platform2/common-mk/platform2_test.py --board tatl --run_as_root env LXD_DIR=/path/to/lxd/data lxd waitready
../platform2/common-mk/platform2_test.py --board tatl --run_as_root env LXD_DIR=/path/to/lxd/data lxc [lxc subcommands go here]

This is not limited to x86_64 boards either, platform2_test.py will automatically set up QEMU to run ARM binaries if you ask it to run binaries from an ARM board. This is likely to be very slow, however.

Note that this is not equivalent to actually running the VM, since only the command you run will be performed. Depending on the exact set up you need to test, this may not be sufficient.

Remote Access

For all the below commands, replace USER_HASH with the CrOS user hash. You can set this with the following command:

export USER_HASH=$(ssh $DEVICE -- dbus-send --system \
    --dest=org.chromium.SessionManager --print-reply --type=method_call \
    /org/chromium/SessionManager \
    org.chromium.SessionManagerInterface.RetrievePrimarySession \
    | awk 'NR==3'  | cut -d "\"" -f2)

Termina

You can log into a running termina from a remote device using vsh via ssh:

ssh $DEVICE -t -- vsh --vm_name=termina --owner_id=$USER_HASH --user=root -- LXD_DIR=/mnt/stateful/lxd LXD_CONF=/mnt/stateful/lxd_conf

To log in as chronos instead of root remove the '--user-root'. The LXD_* lines are to set up the environment so you can talk to LXD.

Copying files is a bit hackier, but you can use the following:

# Local to VM
cat $FILE | ssh $DEVICE -- vsh --vm_name=termina --owner_id=$USER_HASH --user=root -- cp /proc/self/fd/0 $DESTINATION

# VM to Local
ssh $DEVICE -- vsh --vm_name=termina --owner_id=$USER_HASH -- cat $FILE > $DESTINATION

If you want to copy a directory, sorry, you'll have to do it file-by-file or tar it first.

Container

You can log into the container similarly to the above by running

ssh $DEVICE -t -- CROS_USER_ID_HASH=$USER_HASH vmc container termina penguin

Since root-in-termina has access to the container filesystem you can copy files into the container the same way, with $DESTINATION being somewhere inside /mnt/stateful/lxd/storage-pools/default/containers/penguin/rootfs/.

Container via SSH

The above are somewhat limited (e.g. can only copy one file at a time). You can also set up sshd inside Crostini and use it for ssh, scp, etc.

1. Delete /etc/ssh/sshd_not_to_be_run
2. Create ~root/.ssh/authorized_keys with the contents of https://chromium.googlesource.com/chromiumos/chromite/+/main/ssh_keys/testing_rsa.pub
3. Modify /etc/ssh/sshd_config as follows: a. Set port to something other than 22 (since host ssh takes that) e.g. 8222 b. Change PermitRootLogin to yes
4. Restart sshd: sudo systemctl restart ssh
5. Inside Crostini settings enable port forwarding for the port you selected e.g. 8222
6. If you’re connecting to your DUT via a tunnel instead of directly set up another tunnel for this port

You can now connect to Crostini the same as you would the host.

Where to find logs

Chrome

See Chrome Logging on ChromeOS.

Host Services

Host services typically log to /var/log/messages. See also Logging on ChromeOS.

Termina Services

Several Termina services (maitred, tremplin, and lxd) log to crosvm's log. This can be found at /run/daemon-store/crosvm/<user hash>/log/<base64-encoded VM name>.log on the host. The base64 encoding of termina is dGVybWluYQ==, so Termina's crosvm log is at /run/daemon-store/crosvm/<user hash>/log/dGVybWluYQ==.log.

Logs are rotated daily to .log.1 and so on.

Container Services

garcon, sommelier, and other container services log via journald. Their logs can be viewed by running journalctl inside the container.

Attaching a debugger

Host Services

Host service changes can be debugged the same as any other host service. See the main developer guide for details.

Termina Services

In theory you could build gdb into the termina image and use that, or build sshd and gdbserver in and somehow use that. If anyone does manage to debug termina services please update this.

Container Services

You can install and run gdb inside the container for most things, if you get an error try sudo gdb. Anything that's built inside the CrOS chroot can be debugged using gdb-$BOARD, the same as a host service. This requires some setup but will get you symbols and source code.

One-time setup:

1. Enable ssh into the container using the instructions above. Note that due to security requirements port forwarding needs to be turned back on in the Crostini settings each time you restart the device.
2. Install gdbserver and binutils in the container: sudo apt install gdbserver binutils

Now you can follow the instructions in the main developer guide to debug chroot-built services inside Crostini the same as you would on the host (except use tatl/tael as your board).

Extra-steps for services running under ld-linux:

gdb cannot automatically load symbols for any of the binaries in /opt/google/cros-containers; for example, Sommelier. This is because these binaries use ld-linux to load alternative versions of dynamic libraries. We can work around this by loading symbols manually.

For each library or binary that's not recognised run the following in a shell on the device (tip: gdb has a shell command):

base=$(cat /proc/$PID/maps | grep $BINARY_PATH | head -n1 | cut -d- -f1)
offset=$(readelf -WS $BINARY_PATH | grep \.text) | tr -s ' ' | cut -d' ' -f6)
echo Command is "add-symbol-file $BINARY_PATH 0x$base+0x$offset"

Then run the given command in GDB to load symbols for $BINARY_PATH.
